Machines for packaging granular, powder and liquid substances:

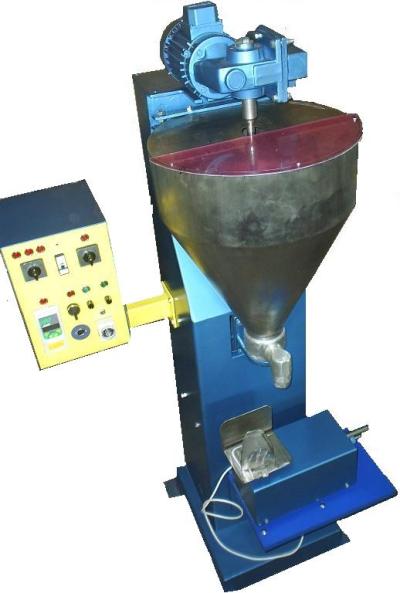

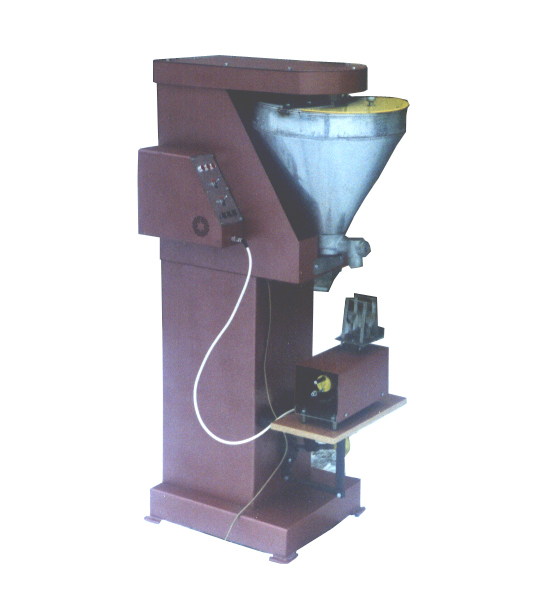

Dose machine for powder material:





Capacity:

250-600 pak./h



Dosage in packing material with electronic control

Using:

1 men

Dose range:

30-1000 g.

Power:

380 V

Machinery:

El. Engine 0,25-0,37KW, 380V, 1400 O/Min., 2 parts

Measuring:

Weight

For use:

Powder substances  (coffe...)



Mixer cubage 25 lit. All parts are from nonrusting materials.

Dimension:

650x650x1650mm

Weight:

120 kg

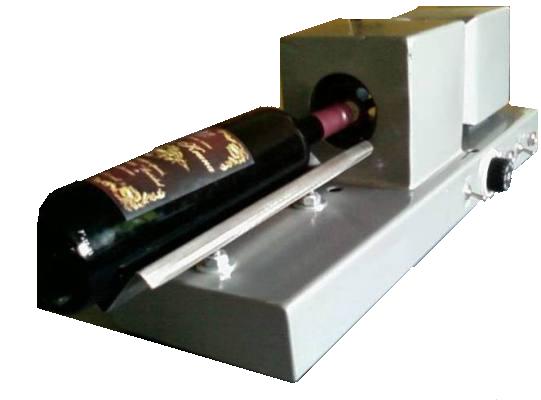

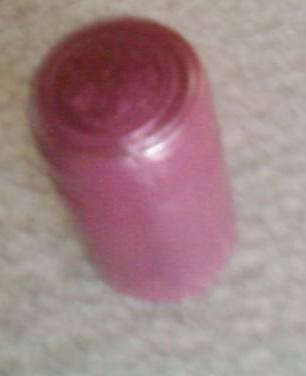

Machine for packing wine bottle cop with thermo-congregate folio:





Capacity:

4-10 pack./min.

For use:

Packing wine bottle cop in thermo congregate folio …

Bigness pack

wine bottl cop

Congregate time:

5-13 sec.

Power:

El. Engine, heater

Dimension:

500x250x250 mm

Weight:

App. 20 kg

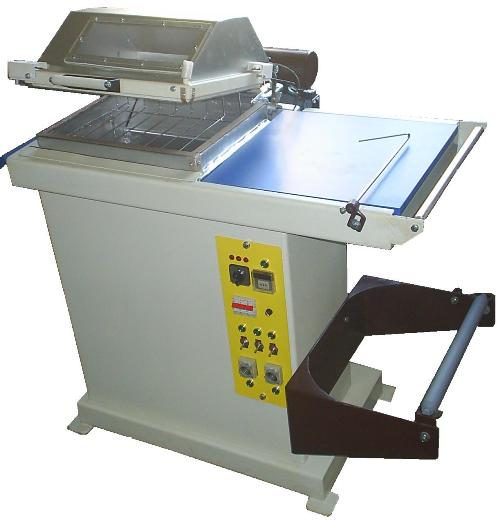

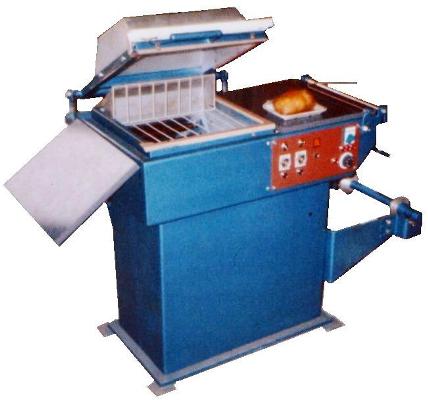

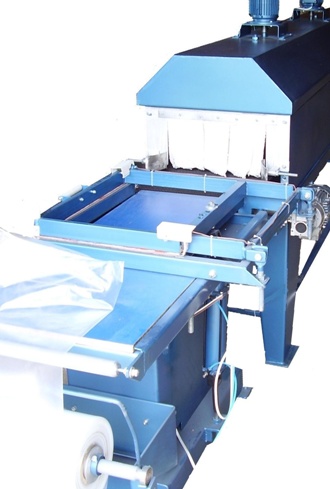

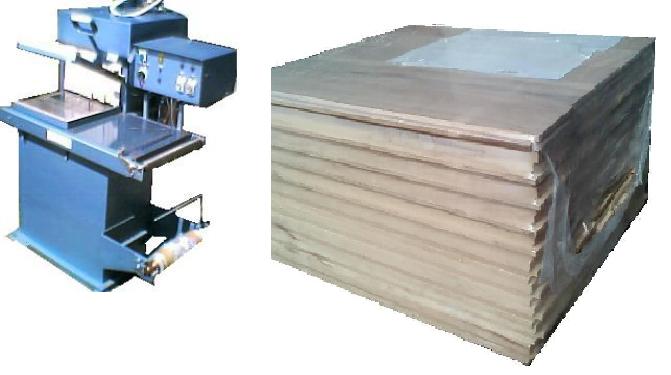

Machine for packing with thermo-congregate folio:





Capacity:

3-12 pack./min.

For use:

Packing thermo congregate folio … apience, collectively, boxing, futejners …

Bigness pack

300 x 250 x 150 mm

Congregate time:

5-13 sec.

Power:

El. Engine, heater

Dimension:

1500x900x1300mm

Weight:

App. 140 kg

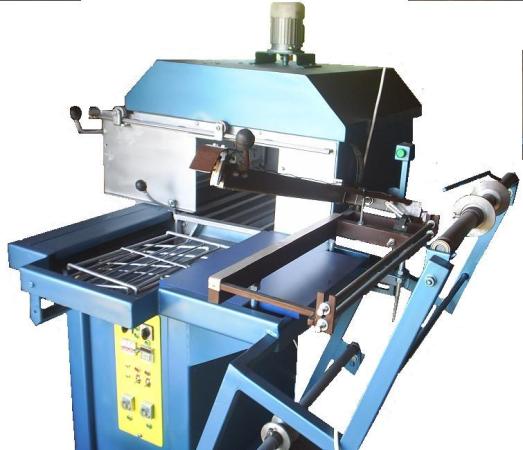

Machine for packing with thermo-congregate folio "Drawer":





Capacity:

2-8 pack./min.

For use:

Packing thermo congregate folio … apience, collectively, boxing, futejners …

Bigness pack

350 x 400x 250 mm

Congregate time:

5-13 sec.

Power:

El. Engine, heater

Dimension:

1500x900x1300mm

Weight:

App. 200kg

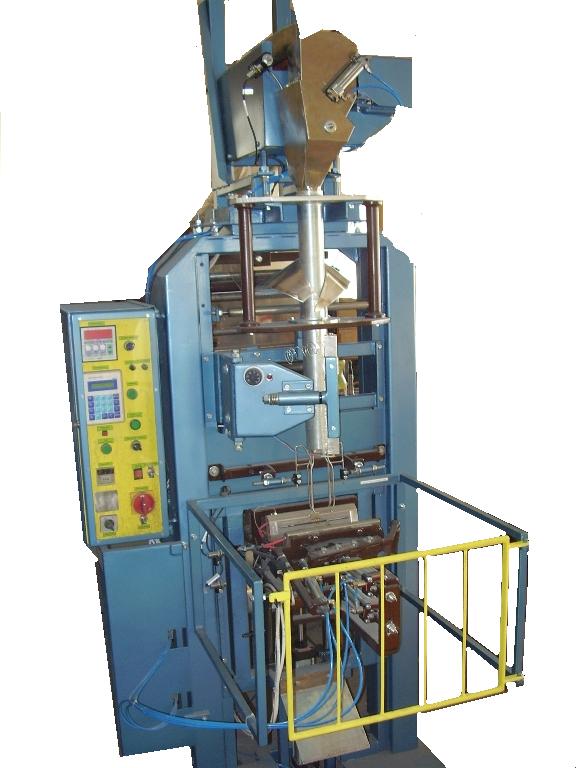

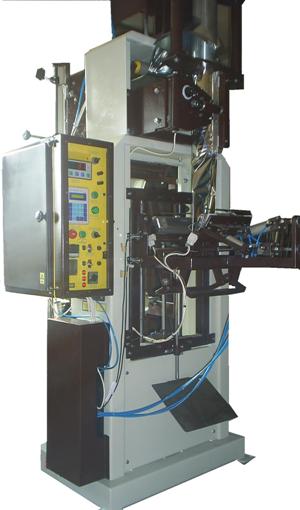

Pack machine automatic with "Collar":



Capacity:

500-1200 p./h

Controlling:

Electroning

Packing range:

5-200g, 200-1000g,500-2000g

Power:

220V, 50Hz, + air 5 Bar.

For use:

Granular and powder  substances.

Measuring:

Weight

Folio:

One-layer, printed or  blank

Process:

Make purses, dosage, close, date, count, All parts are from nonrusting materials.

Dimension:

700x800x3000 mm

Weight:

400 Kg

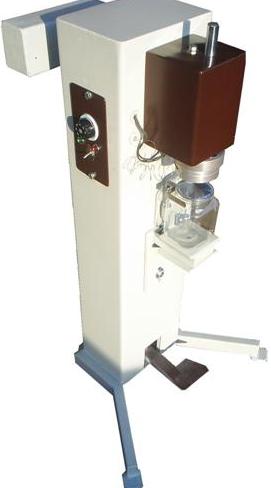

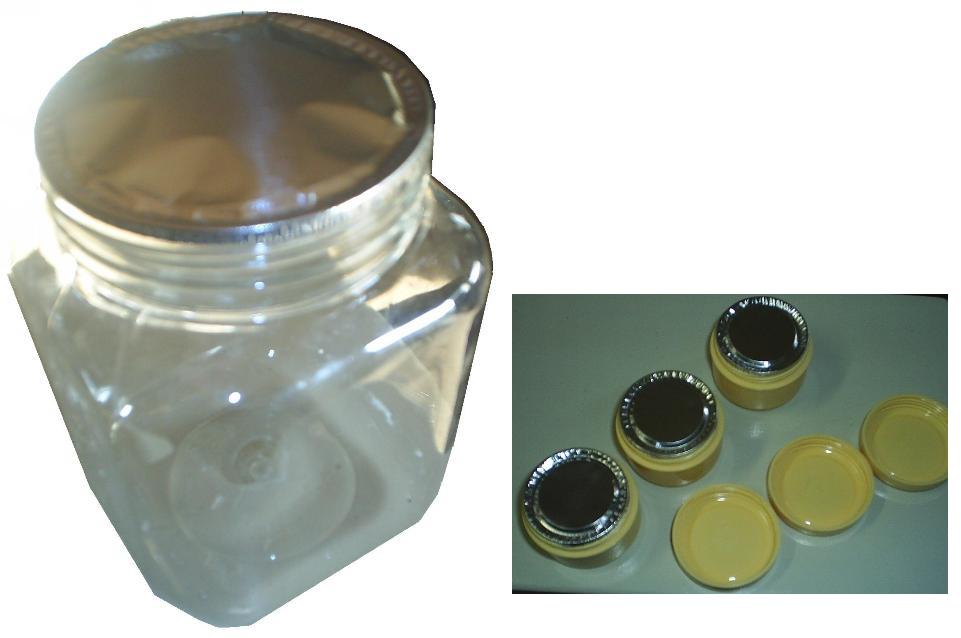

Weld machine for purse botlles, jars...:


Dimension botlles:

deal


Using:

1 men

For use:

Welding protective covers on the jars and mini containers with Aluminium , paper ...

Power:

220V, 50Hz

Dimension:

350x300x1100mm

Weight:

app. 45 Kg

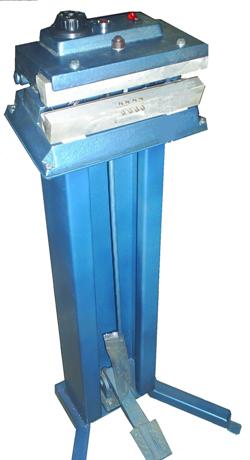

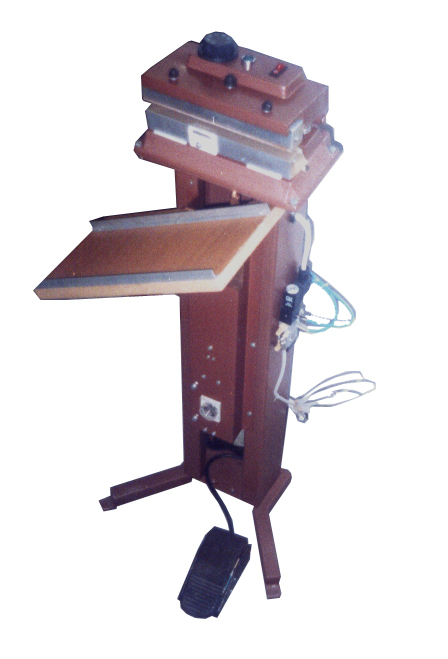

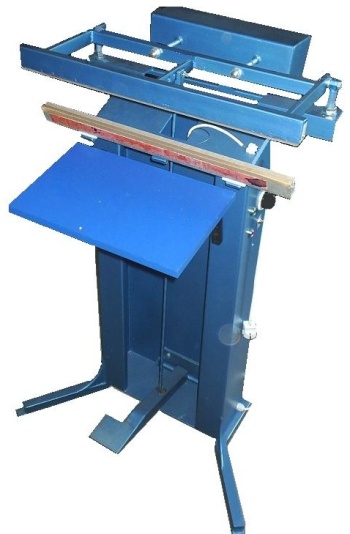

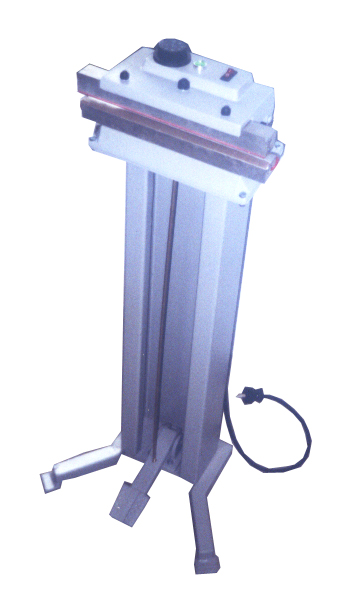

Weld machine for purse:


Digestion pedal: (Mechanic)


600 mm


Digestion pedal: (Mechanic)


Automatic, pneumatic (determine time)

Using:

1 men

For use:

Welding purses (Polietilen, polipropilen)

Power:

220V, 50Hz, (automatic+ air 5 Bar.)

Dimension:

350x300x1100mm, 600x350x1100mm

Weight:

20 Kg (45 Kg)



Dose machine for liquid substances:











Capacity:

250-600 pak./h,
dosage in packing material

Using:

1 men

Dose range:

5-50; 50-250; 250-1000 ml

Power:

220V, 50Hz, komp. Air 5 bar.

Measuring:

Content

Cubage:

3-20 Lit.

For use:

Dosing Liquid substances. All parts are from nonrusting materials.

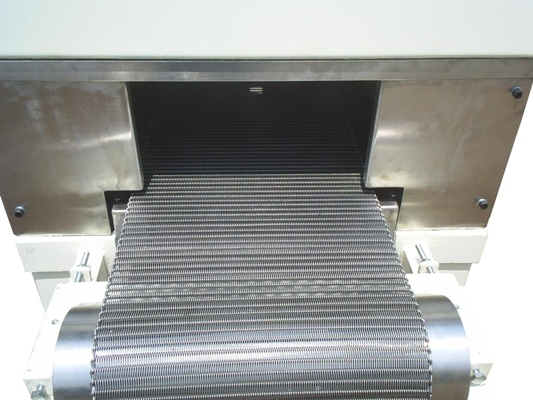

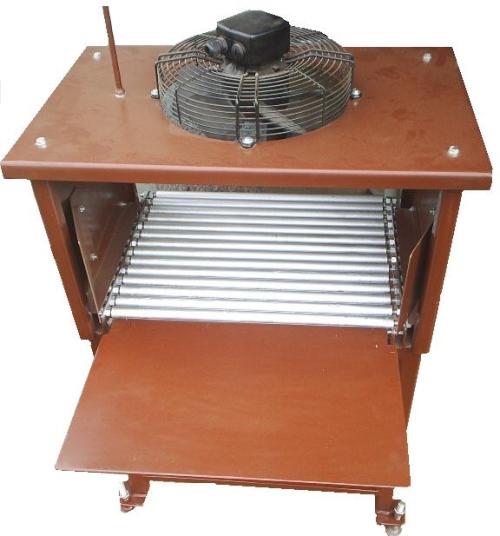

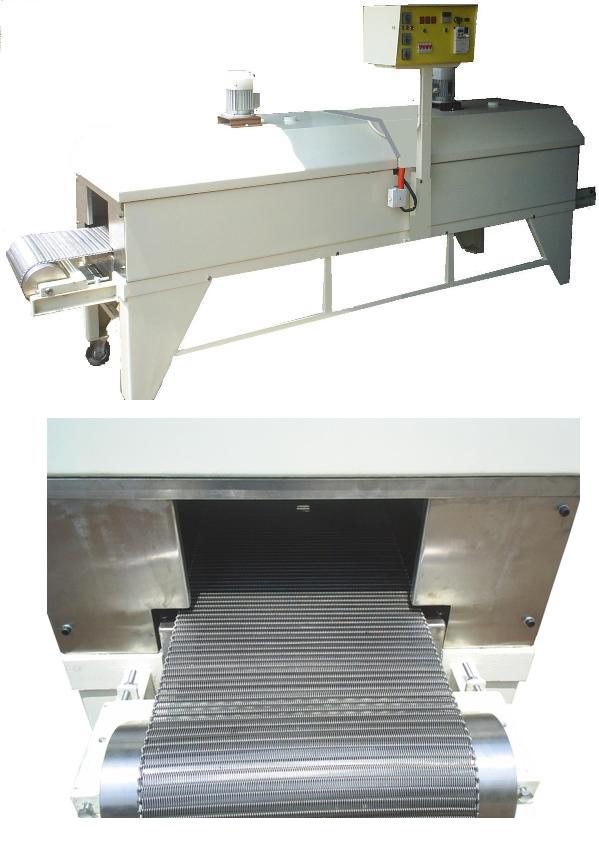

Machine for packing with thermo-congregate folio "thermo tunell"



weld

cold

Capacity:

5-30 pack./min.

For use:

Packing thermo congregate folio … apience, collectively, boxing, futejners …

Bigness pack

400 x 500 x 300 mm

Congregate time:

5-10 sec.

Power:

El. Engine, heater

Dimension:

3000x600x1700mm

Weight:

App. 300 kg

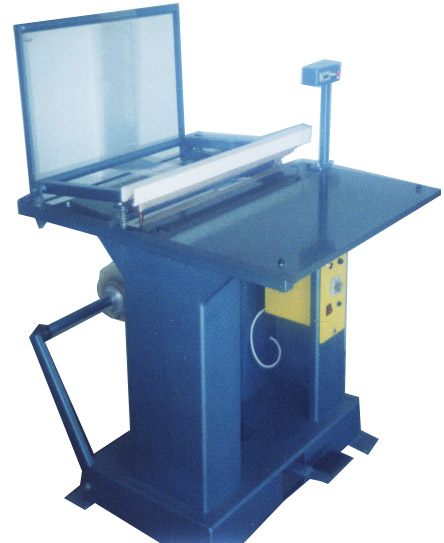

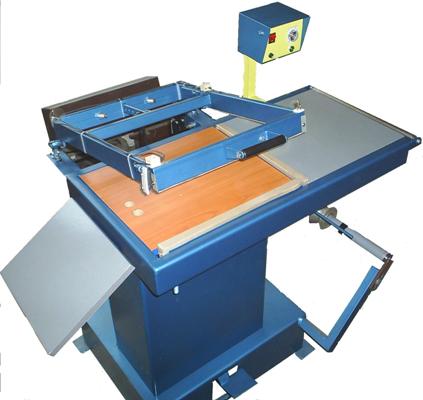

Form for purse and bag:

Corner

Height digestion:

600mm

Width digestion:

1mm, Slicing on digestion

Digestion and slicing speed:

1-3 seconds

Magnitude radiator:

300W. Half-automatic, use one worker

For use:

Making purses and bags

Power:

220V, 50Hz

Dimension:

700x900x1100mm

Weight:

70 Kg

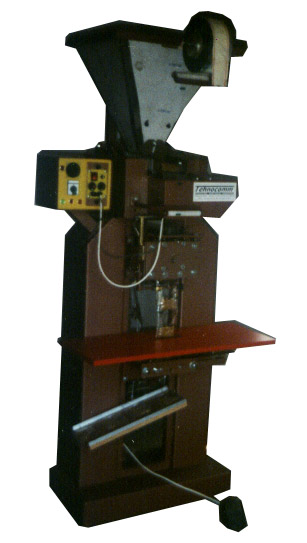

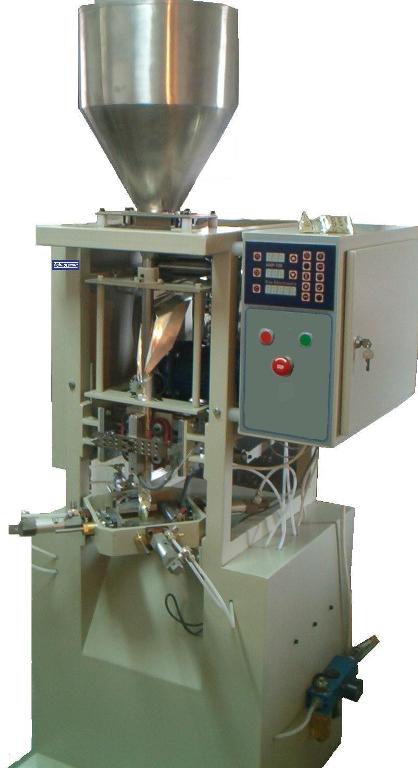

Pack machine for small packaging:



Capacity:

700-1800 p./h

Controlling:

Electroning

Packing range:

1(5)-30(50)g

Power:

220V, 50Hz,+Air 5 Bar.

For use:

Granular and powder  substances.

Measuring: 2 models:

Cubage, Weight

Process:

Make purses, dosage, close, date, count, All parts are from nonrusting materials.

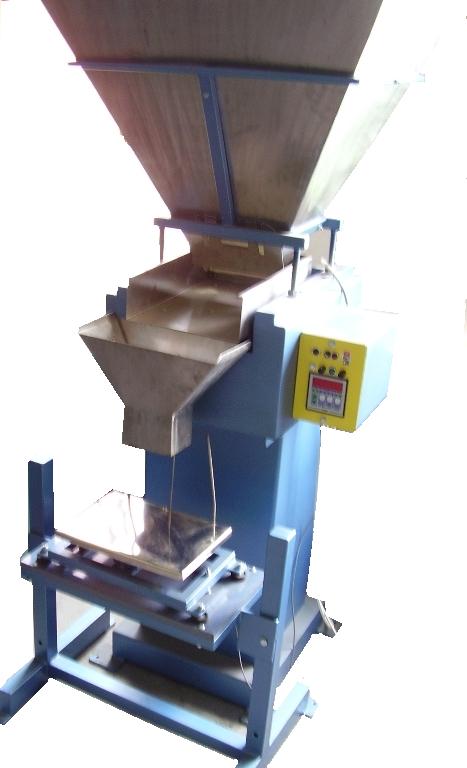

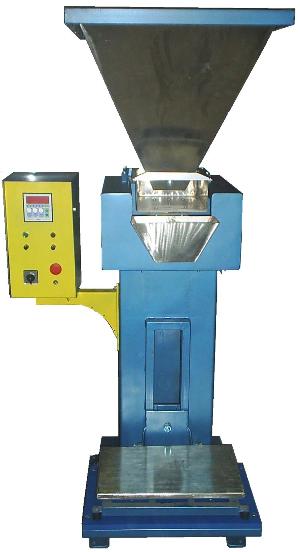

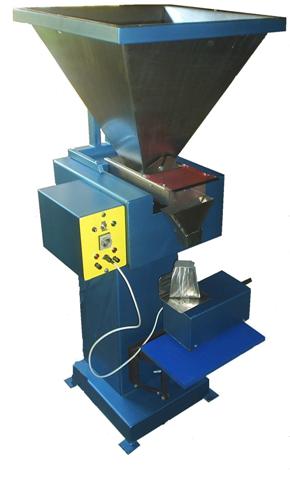

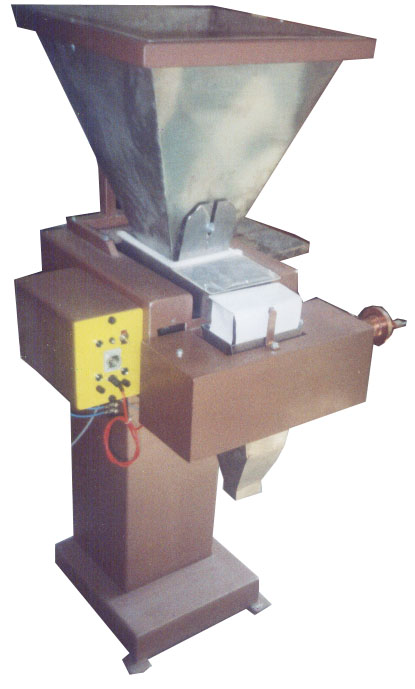

Dose machine for granular and powder substances:


- Standard
-
With slowing at the end, dose.

-for bags - electronic


- With “vessel” (first ruler-it, then dropped)



with electronic

Capacity:

250-600 pak./h,
dosage in packing material

Using:

1 men

Dose range:

30-1000 (5000g)

Power:

220V, 50Hz

Measuring:

Weight

Cubage:

50 Lit.

For use:

Granular and powder substances. All parts are from nonrusting materials.

Dimension:

650x650x 1650mm,

Weight:

80 Kg





Pack machine  half-automatic  for small packaging:



Capacity:

350-1000 p./h

Folio:

 printed or blank.

Using:

1 men

Packing range:

1(5)-30(50)g

Power:

220V, 50Hz, + Air 5 Bar.

For use:

Granular and powder  substances.

Measuring: 2 models

Cubage, Weight

Process:

Make purses, dosage, close, date, count, All parts are from nonrusting materials.

Dimension:

700x800x200mm

Weight:

200 Kg

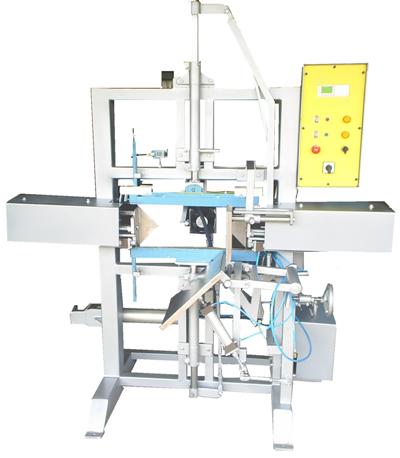

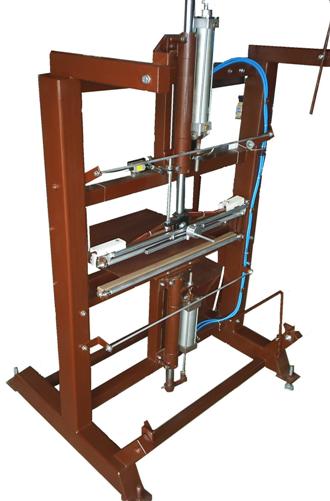

Machine for forming and closing the bag with a "block" bottoms (diapers, inserts ...):





Capacity

5-15 pak./min.

Process:

Product packaging in bags with the formation of a block begs  (diapers, inserts, etc)

Weld lenght:

500 mm

Capacity:

200-400 h

Machinery:

El. Motor, heaters, vacuum pump, comp. air

Dimension:

1500x900x1900mm

Weight:

Oko 140 kg
