Equipment for food industry...

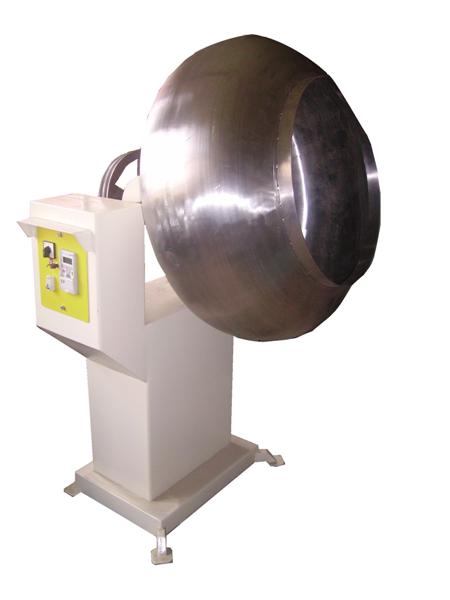

Tablet Coating Machine



Cubage vessel:

20 - 100 lit.

Material:

all parts are from inox

For use:

Coating tablet and bonbons

Process Time:

Prescribes Technologist

Power:

El. engine 1 KW, 380V, 1400 O/Min.

Dimension:

1400x1000x1600mm

Weight:

App. 160 kg

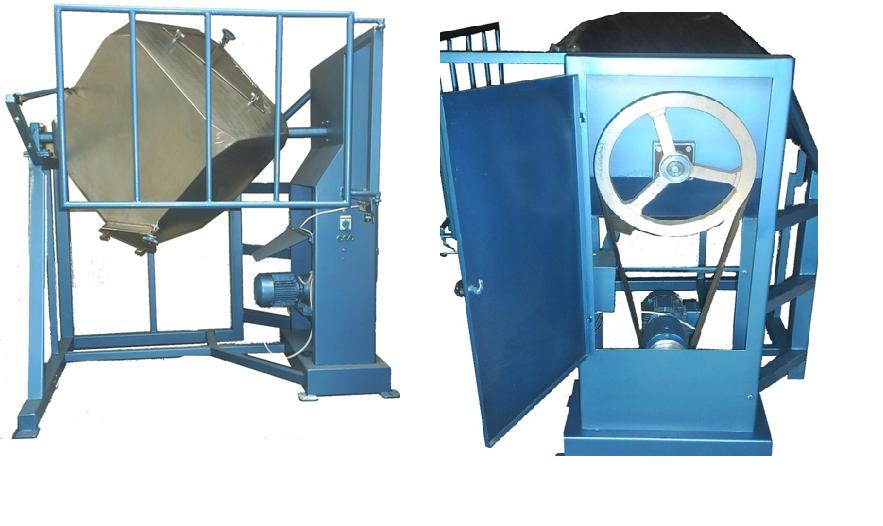

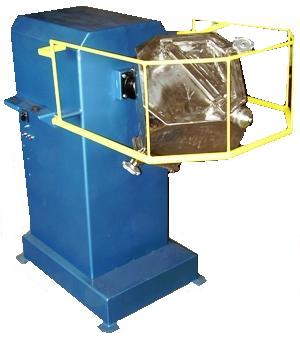

Mixer “cube” for homogen admixture:





(For Pharmacy)

Cubage vessel:

200 lit. (10-300 ...)

Mixer material:

all parts are from inox

For use:

Production of cook cream, aroma...

Mixing time:

5-25 Min.

Power:

El. engine 1 KW, 380V, 1400 O/Min.

Dimension:

1400x600x1600mm

Weight:

280 kg

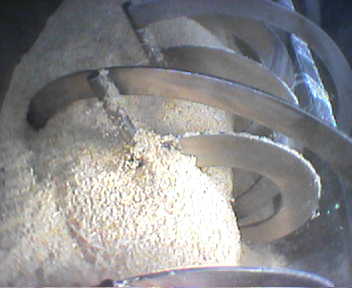

Mixer for homogen admixture powder material:

Cubage vessel:

200 lit.

Mixer Spiral:

400-50 all parts are from inox

For use:

Production of cook cream...

Mixing time:

5-15 Min.

Power:

El. engine 1 KW, 380V, 1400 O/Min.

Dimension:

1400x600x1600mm

Weight:

160 kg

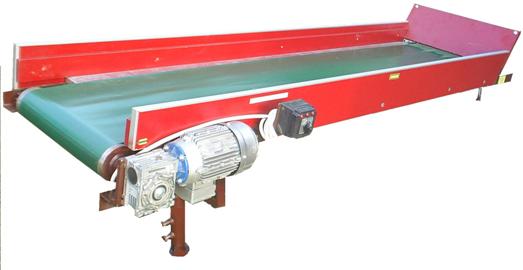

Conveyor belt





Application:

Transport in the production process

Dimenzije:

All dimensions and length (standard length 2500 mm, width 350 mm)

Features:

automatic start - stop

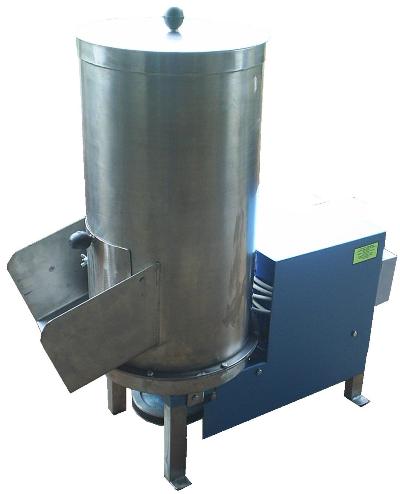

Chopper - crusher for fruit and vegetables:





Volume containers:

50 liters - Agreement

Wheel containers:

Fi 300

Application:

prepare fruit and vegetables for the production of juice, extract, squeezing fruit ...

Milling time:

1 - 4 minuta

Propulsion:

El. engine

Dimensions:

600x800x1100 mm

Weight:

App. 70 kg

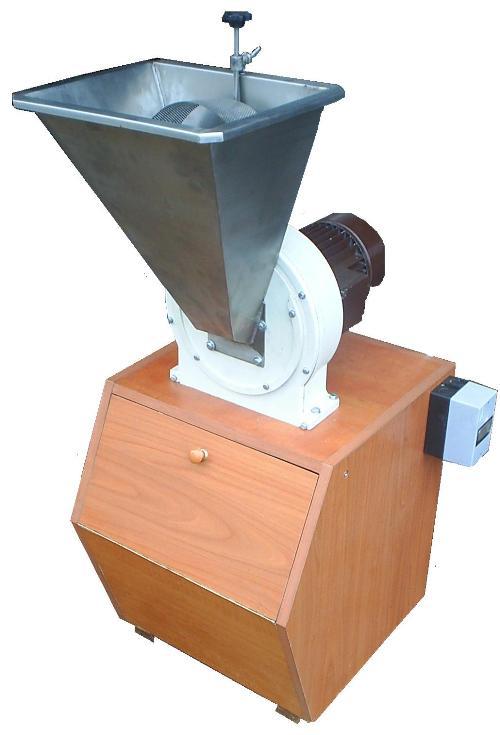

Mill vegetables



Turbine:

250 mm

Capacity:

50-100 kg-h

Collecting box:

600x600x400 mm



All parts are from nonrusting materials.

Power:

El. Motor 2.2KW, 380V, 2800 O/Min.

Dimension:

600x600x700 (1400)mm

Weight:

70 kg

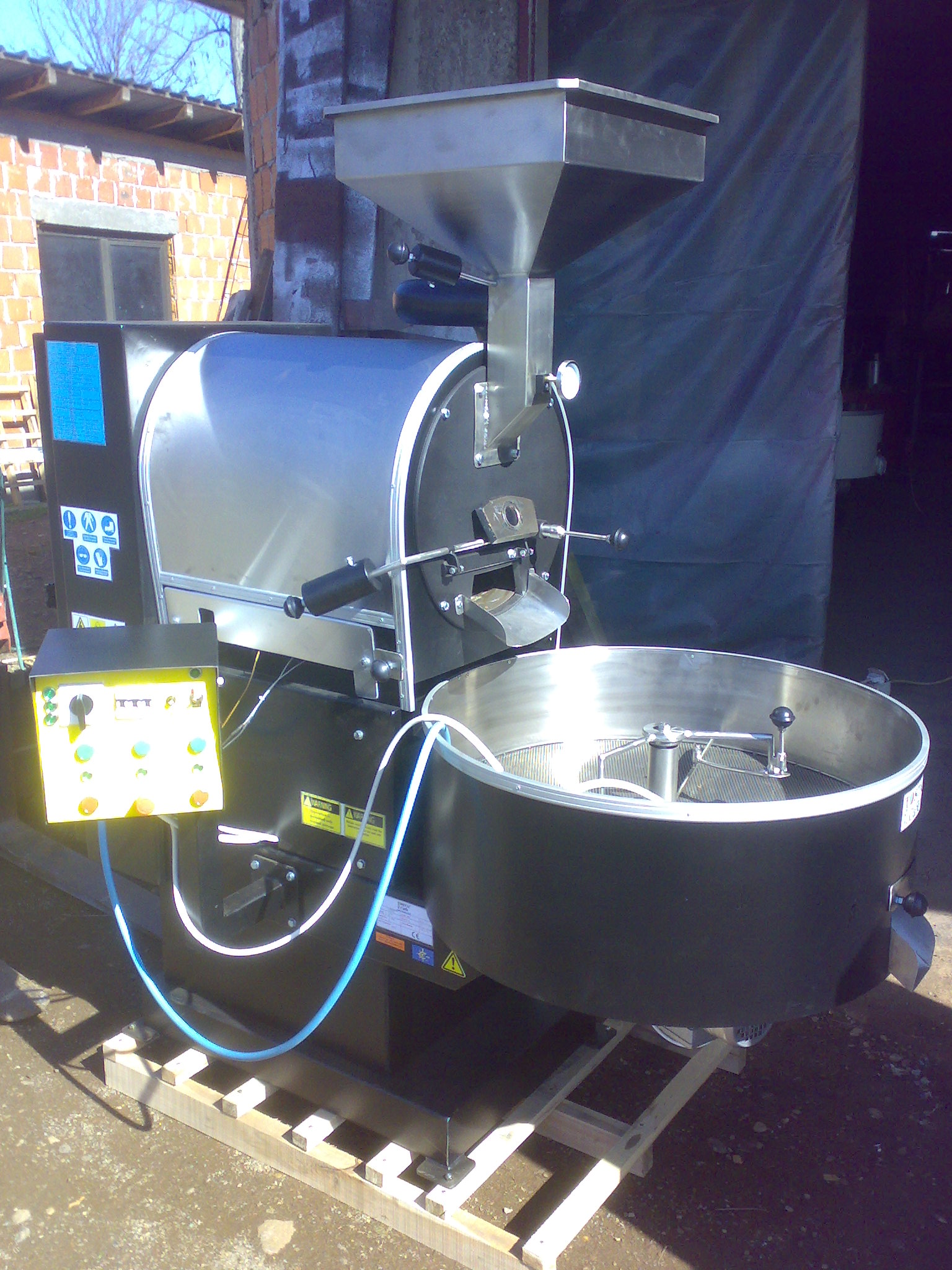

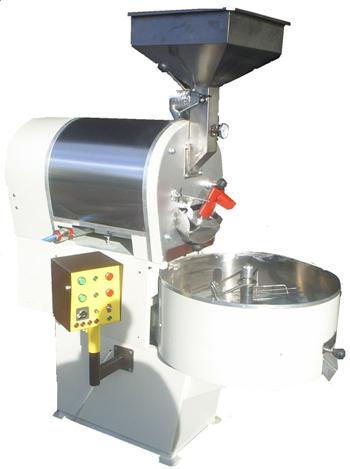

Machine for Roast koffe, peanuts, seed …:





Capacity:

30 kg/h (60, 90,120)

Cup for Roast:

all in contact with a mass of stainless steel

For use:

Roast Coffe , peanuts, Seeds ...

Roast time:

20-30 Min/bout

Power:

El. engine 1,5 KW, 380V, 1400 O/Min.

Dimension:

1600x1000x1700mm

Weight:

App. 200 kg

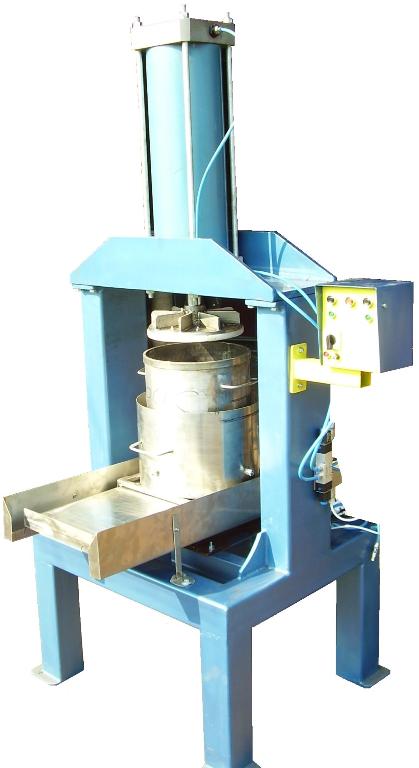

Press for squeezing fruit and vegetables:





Volume containers:

50 liters - Agreement

Dimensions containers:

Fi 300, L-350

Application:

Production of juice, extract, squeezing fruit ...

Time pressing:

1 - 4 min.

Propulsion:

Pneumatics or Hydraulics

Dimensions:

1400x1000x2000 mm

Weight:

About 380 kg




Mixer for aromatic process in Food industry - Circulating:





Materials:


all in contact with a mass of stainless steel

Installed power:

App. 1 Kw

Application:

Aromatic process, dosing with food aromas ...

Weather aromatic process:

flow

Propulsion:

El.motor, reducer

Dimensions:

1300x800x1450 mm

Weight:

App 140 kg

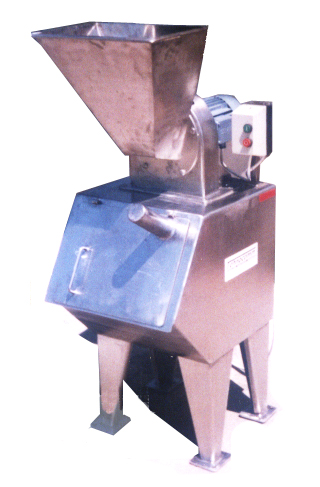

Mill for sugar, salt:
Two models:

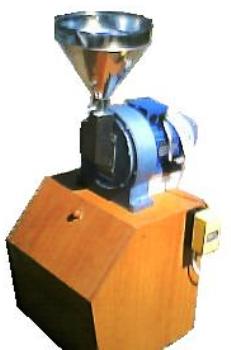

Mill for sugar


Mill for sugar and salt:

Turbine:

250 mm

Capacity:

50-100 kg-h

Collecting box:

600x600x400 mm



All parts are from nonrusting materials.

Power:

El. Motor 2.2KW, 380V, 2800 O/Min.

Dimension:

600x600x700 (1400)mm

Weight:

70/140 kg

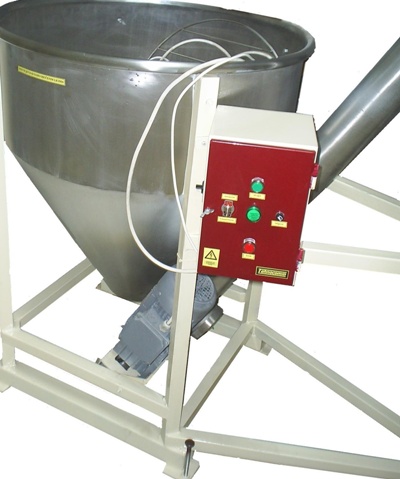

Screw conveyor





Application:

Transport in the production process

Dimenzije:

All dimensions and length (standard 300-liter vessel removal of mass at the height of 3000 mm)

Features:

automatic start - stop

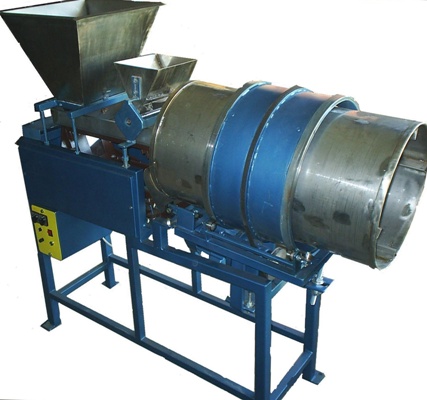

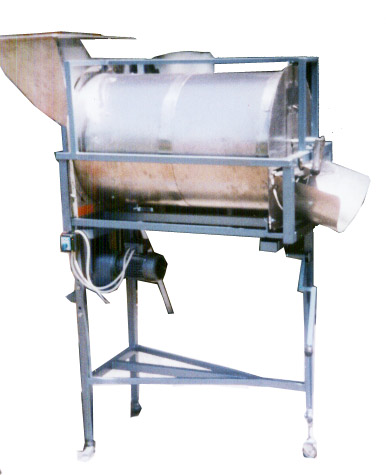

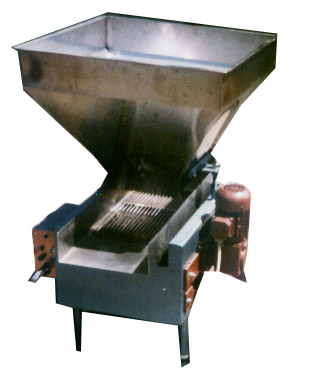

Aromatic mixer (pop-corn, flips...) With Separator:

Aromatic vibro

Separator

Cubage timpan: 200 lit.
Separator: Divide damaged parts and collecting. All parts are from inox.
Dimension: 1600x600x1800mm + Separator
650x650x1200mm
Weight: 130 Kg + Separator 70 Kg

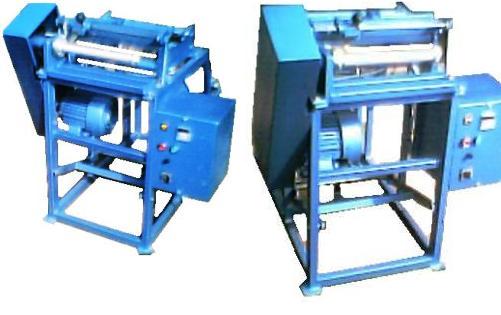

Rewinder for binding Alu folio





Inplementation:

Binding Alu folio from big to fewer package Alu folio

Control

Electronic

Dimenzije:

1300x700x1200mm

Težina:

Oko 130 Kg

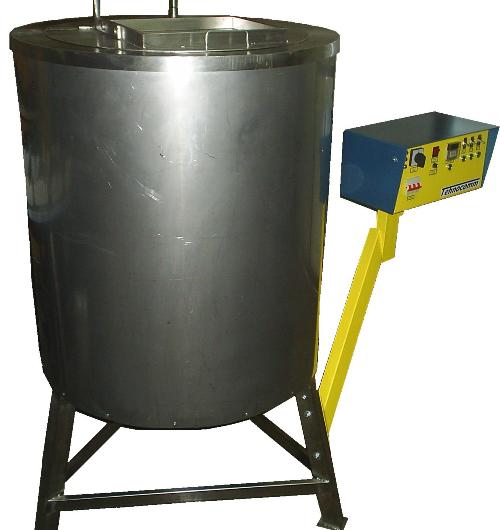

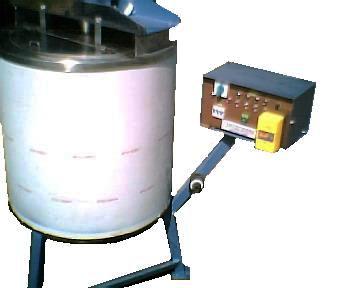

Duplicator for cookery:





Cubage vessel:

220 lit.(300...)

Mixer Spiral:

„Anchor“ All parts are from inox

For use:

Production - cook cream, locum, marmalade, juice ...

Mixing time:

20-120 Min.

Power:

El. engine 1- 1,5 KW, 380V, 1400 O/Min.

Dimension:

1400x1000x1600mm

Weight:

380 kg

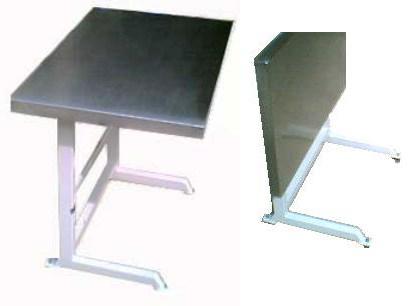

Working desk of Inox





Inplementation:

Packing, separating products, adjust products ...

Dimenzije:

All dimensions (100x650x40)…

Potential:

In posse assemblage

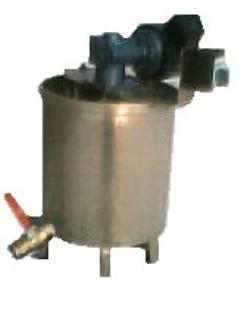

Mixer for homogen admixture liquid material:





Cubage vessel:

20 - 1000 lit.

Materials:

all parts are from inox

For use:

Production of liquid products ...

Mixing time:

5-30 Min.

Power:

El. engine with divider
